Introduction

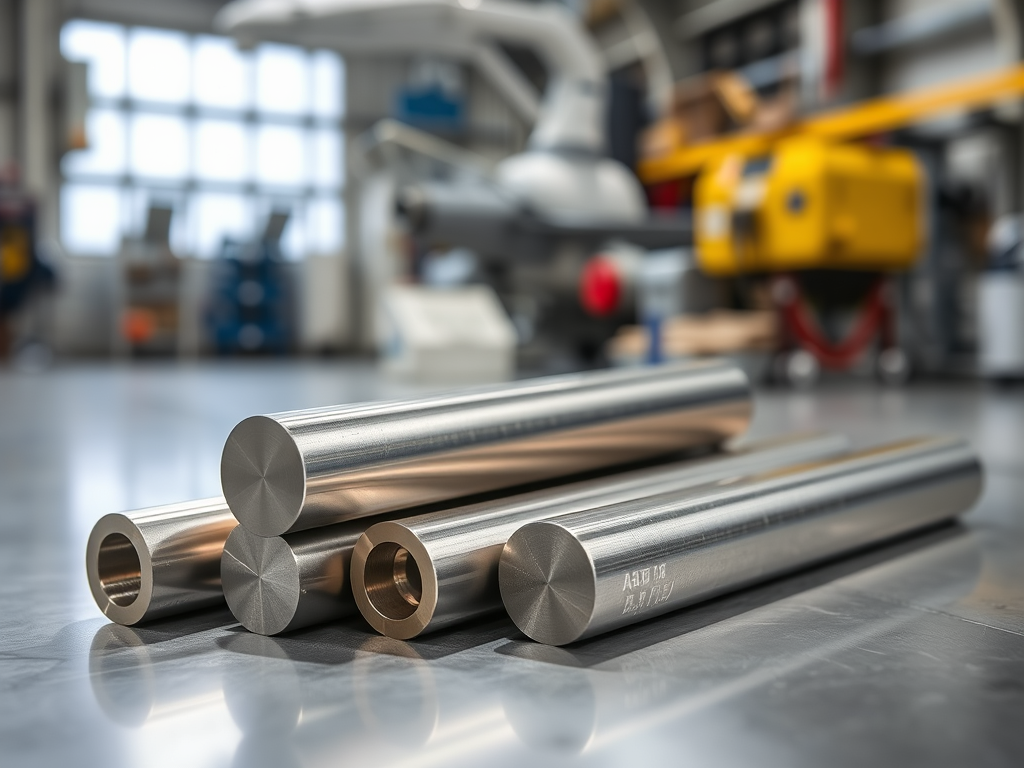

Titanium alloys are essential materials in modern engineering, and ASTM B348 GR5 Titanium Bar, also known as Ti-6Al-4V, is the most widely used among them. This alloy balances strength, corrosion resistance, and biocompatibility, making it indispensable in aerospace, medical, marine, and chemical industries.
ASTM B348 Standard Overview
ASTM B348 is the international standard for titanium and titanium alloy bars and billets. GR5 (UNS R56400) is the flagship alloy in this category, widely used across multiple industries.
📊 Table 1: Common Grades in ASTM B348
| Grade | UNS Number | Alloy Type | Main Elements | Applications |
|---|---|---|---|---|
| GR1 | R50250 | CP Titanium | None | Chemical, marine |
| GR2 | R50400 | CP Titanium | None | Pressure vessels |
| GR5 | R56400 | α-β Alloy | 6% Al, 4% V | Aerospace, medical |
| GR7 | R52400 | CP Ti + Pd | 0.12–0.25% Pd | Seawater, chemical |
| GR23 | R56401 | α-β Alloy (ELI) | 6% Al, 4% V | Medical implants |
Chemical Composition
The chemical composition of GR5 titanium alloy ensures high performance and strict quality control.
📊 Table 2: Chemical Composition of GR5 Titanium Bar (wt.%)
| Element | Minimum | Maximum |
|---|---|---|
| Al | 5.50 | 6.75 |
| V | 3.50 | 4.50 |
| Fe | — | 0.40 |
| O | — | 0.20 |
| C | — | 0.08 |
| N | — | 0.05 |
| H | — | 0.0125 |
| Ti | Balance | — |
Physical Properties
GR5 titanium alloy has stable physical properties across extreme conditions.
📊 Table 3: Physical Properties of GR5 Titanium Bar
| Property | Value |
|---|---|
| Density | 4.43 g/cm³ |
| Melting Point | 1604–1660 °C |
| Elastic Modulus | 113.8 GPa |
| Poisson’s Ratio | 0.34 |
| Thermal Conductivity | 6.7 W/m·K |
| Heat Capacity | 560 J/kg·K |
| Electrical Resistivity | 1.71 µΩ·m |
Mechanical Properties
The alloy is prized for its strength-to-weight ratio and durability.
📊 Table 4: Mechanical Properties of GR5 Titanium Bar
| Condition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Reduction of Area (%) | Hardness (HRC) |
|---|---|---|---|---|---|
| ASTM Minimum | ≥ 895 | ≥ 828 | ≥ 10 | ≥ 25 | 30–36 |
| Typical Values | 930–970 | 880–930 | 12–14 | 30–35 | 34–38 |
Comparison with Other Titanium Alloys
📊 Table 5: Performance Comparison of Titanium Alloys
| Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Density (g/cm³) | Applications |
|---|---|---|---|---|---|
| GR1 | 240–350 | 170–275 | 24–28 | 4.51 | Chemical, marine |
| GR2 | 350–450 | 275–400 | 20–24 | 4.51 | Pressure vessels |
| GR5 | 930–970 | 880–930 | 12–14 | 4.43 | Aerospace, medical |
| GR23 | 900–940 | 830–900 | 14–15 | 4.43 | Implants |
| GR7 | 350–450 | 275–400 | 20–25 | 4.51 | Chemical processing |
Key Advantages of GR5 Titanium Bar
- ⚙️ High strength-to-weight ratio
- 🌊 Excellent corrosion resistance
- 🩺 Biocompatibility for medical use
- 🔩 Strong fatigue resistance
- 🔥 Reliable high-temperature performance
Industrial Applications
Aerospace: jet engines, landing gear, fuselage structures
Medical: implants, dental prosthetics, bone screws
Marine: submarine hulls, propeller shafts, offshore platforms
Chemical: heat exchangers, reactors, corrosive piping
📊 Table 6: Application Benefits
| Industry | Application | GR5 Advantage |
|---|---|---|
| Aerospace | Engine parts | Lightweight and strong |
| Medical | Implants | Biocompatibility |
| Marine | Submarines | Chloride resistance |
| Chemical | Heat exchangers | Corrosion resistance |
Processing and Heat Treatment
- Forging temperature: 900–950 °C
- Annealing temperature: 700–800 °C
- Machining: sharp tools, low speeds, high lubrication
- Welding: GTAW or EBW with inert gas shielding
Quality Control and Certifications
Manufacturers supply ASTM B348 GR5 titanium bars with:
- EN 10204 3.1 / 3.2 certificates
- Mechanical test results
- Ultrasonic testing reports
- ICP-OES or XRF chemical analysis
Market Trends
- GR5 titanium accounts for more than 50% of global titanium alloy use.
- Market price: USD 40–60/kg depending on dimension and finish.
- Aerospace and medical sectors drive annual demand growth of 6–8%.
📊 Table 7: Global Titanium Alloy Market Share (2025)
| Alloy | Share (%) |
|---|---|
| GR1 & GR2 | 20 |
| GR5 | 55 |
| GR7 | 10 |
| GR23 | 8 |
| Others | 7 |
Conclusion
The ASTM B348 GR5 Titanium Bar (Ti-6Al-4V) is the most versatile and widely adopted titanium alloy, offering high strength, excellent corrosion resistance, and medical-grade biocompatibility. Its dominance across aerospace, medical, marine, and chemical industries confirms its status as the industry benchmark.
