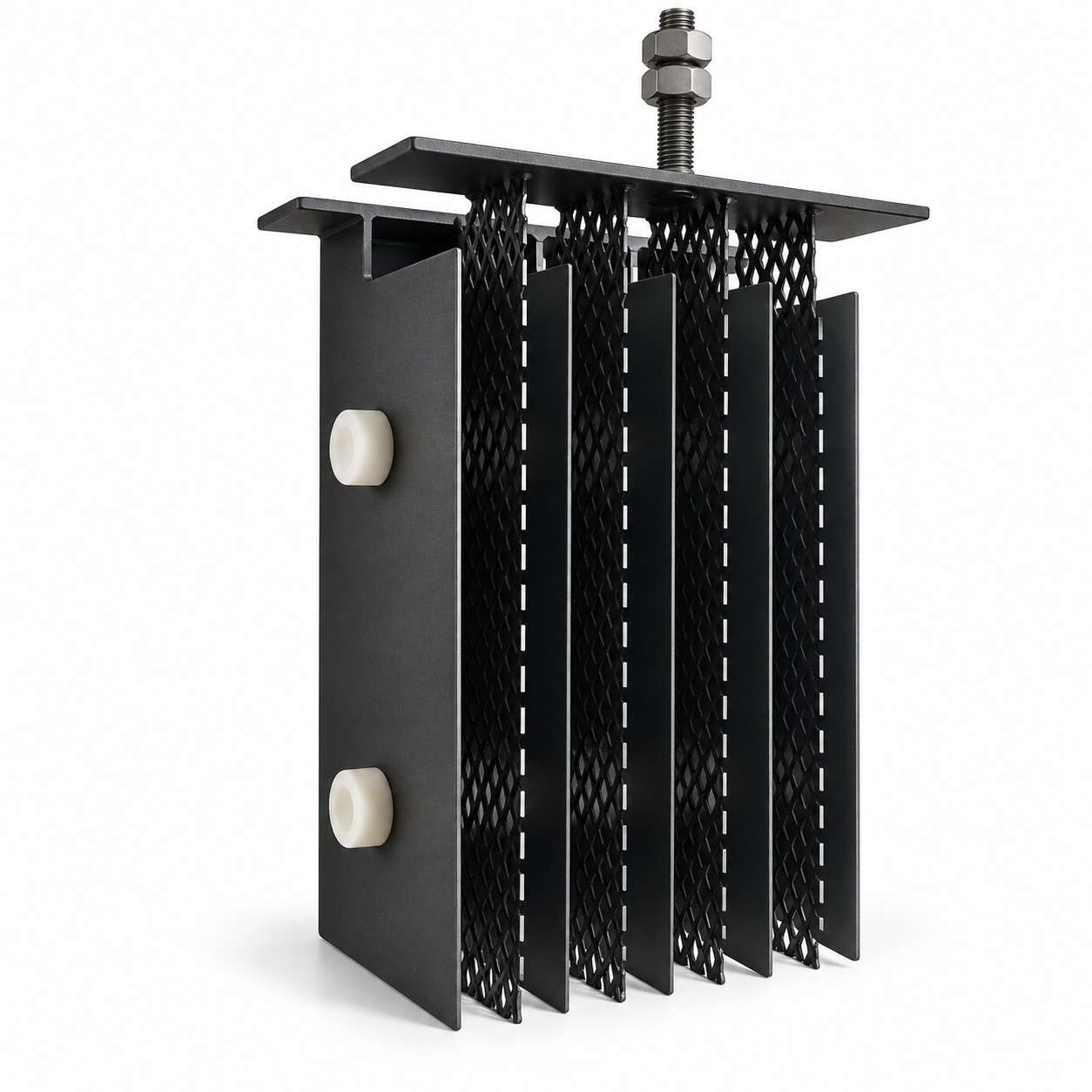

Sodium Hypochlorite Anode with Ru-Ir MMO Titanium Mesh

Description

🧪 Ru-Ir MMO Mesh for On-Site Sodium Hypochlorite Generation

A Sodium Hypochlorite Anode is the chlorine-evolving electrode used inside a brine electrolyzer to produce sodium hypochlorite on site. Unlike a generic MMO titanium electrode, this product must be designed around chlorine output, brine chemistry, operating current, mesh geometry, electrode spacing, hydraulic flow, and the electrical layout of the cell.

NiTiCu supplies custom Ru-Ir MMO coated titanium mesh electrodes for sodium hypochlorite generators, seawater electrochlorination units, cooling-water disinfection systems, and other chloride-rich electrolysis applications. Each Sodium Hypochlorite Anode can be manufactured to drawing, with customized mesh dimensions, active coated area, connection tab, frame, and coating configuration.

Ru-Ir MMO · Titanium Mesh · Chlorine Evolution · Brine Electrolysis · Custom Cell Integration

---

📋 Engineering Specification

A Sodium Hypochlorite Anode should therefore be purchased as part of the electrolyzer design, not as a standard black-coated titanium mesh selected only by outside dimensions.

---

⚡ How the Electrochlorination Process Works

In sodium hypochlorite generation, chloride ions in the brine are oxidized at the anode. The primary anodic reaction can be written as:

2Cl⁻ → Cl₂ + 2e⁻

The generated chlorine then reacts with water and alkaline species in the cell environment, forming active chlorine species such as hypochlorous acid and hypochlorite.

The final balance between Cl₂, HOCl, and OCl⁻ depends on pH, chloride concentration, temperature, cell voltage, flow, and residence time. This is why the Sodium Hypochlorite Anode must be matched to the complete operating window rather than to one isolated electrical parameter.

A practical system flow is:

Brine Preparation → Electrolyzer → Chlorine Evolution → Hypochlorite Formation → Product Collection

---

🧬 Why Ru-Ir MMO Is Used for Chlorine Evolution

The Ru-Ir coating system is selected because ruthenium oxide provides strong catalytic activity toward chlorine evolution, while iridium oxide contributes to coating stability and electrochemical durability.

The exact coating formulation is project dependent. Some systems use a binary RuO₂-IrO₂ coating, while others may include additional stabilizing oxides. Confirm the Ru:Ir ratio and its molar or mass basis in the production specification; no single ratio applies to every electrolyzer.

A Ru-Ir MMO Anode is therefore fundamentally different from an Ir-Ta oxygen-evolution anode. The former is designed for chloride-rich electrochlorination service, while the latter is more commonly associated with oxygen evolution in acidic sulfate systems.

For a Sodium Hypochlorite Anode, the dominant reaction and chloride environment should always be confirmed before the coating system is finalized.

---

📐 Why Titanium Mesh Matters

The mesh is not simply a shape choice. It affects liquid flow, gas release, current distribution, and how the electrode fits into the electrolyzer.

An expanded titanium mesh gives the Sodium Hypochlorite Anode four practical engineering advantages.

Open Flow Area

Brine can move through the electrode rather than only around a solid plate. This can support more effective mass transport in compact electrolyzer cells.

Easier Gas Release

Chlorine-containing gas bubbles can leave the active surface more easily when the electrode has an open mesh structure.

Flexible Active Area

Mesh geometry allows the designer to balance overall dimensions, geometric area, open area, and current density.

Easy Cell Integration

A Sodium Hypochlorite Anode made from mesh can be integrated into narrow-gap electrolyzers, framed assemblies, modular replacement cartridges, and custom flow-through structures.

---

📏 Mesh Geometry Must Be Specified

Two electrodes can have the same outside length and width but behave differently if their mesh geometry is different.

For a replacement Sodium Hypochlorite Anode, the original mesh specification should be measured or supplied by drawing whenever possible.

If only overall dimensions are provided, the replacement may physically fit but still differ in open area, hydraulic resistance, or active surface distribution.

---

📊 Design from Chlorine Output

A sodium hypochlorite generator should not be sized by choosing an electrode first and asking how much chlorine it can make later.

The more logical sequence is:

Required Chlorine Output → Operating Current → Current Density → Active Area → Mesh Geometry → Cell Layout

From Faraday’s law, the theoretical chlorine production is approximately 1.32 g Cl₂ per ampere-hour before real current efficiency and process losses are considered.

This provides a useful engineering starting point, but actual available chlorine production depends on cell design and operating conditions.

A Sodium Hypochlorite Anode intended for a small laboratory generator may therefore use a completely different active area and coating duty from an electrode used in a continuous industrial disinfection system.

---

📋 Data Needed Before Electrode Design

The following information is much more useful than dimensions alone:

For a custom Sodium Hypochlorite Anode, NiTiCu recommends providing the real generator conditions rather than asking for a generic coating specification.

---

🌊 Brine, Seawater & Water Chemistry

Not every chloride-containing feed behaves the same way.

A sodium hypochlorite system may use prepared NaCl brine, seawater, brackish water, or another chloride-containing process stream. Each environment can introduce different scaling, fouling, conductivity, and maintenance challenges.

Important water constituents can include:

Ca²⁺ · Mg²⁺ · Fe · Suspended Solids · Organic Matter

High calcium and magnesium concentrations are especially important because scale can accumulate on the cathode side.

The Sodium Hypochlorite Anode itself must also be evaluated against the actual chloride concentration, temperature, and cleaning strategy used by the operator.

---

🔄 Scaling & Polarity Reversal

Cathode scaling is one of the practical maintenance issues in electrochlorination equipment.

Local alkalinity near the cathode can encourage deposits such as:

CaCO₃ · Mg(OH)₂

Some systems address this with periodic polarity reversal.

If polarity reversal is part of the generator design, it must be confirmed before the electrode coating is selected. During reversal, an electrode that normally works as a cathode may temporarily become the anode.

This can change the coating requirement significantly.

A Sodium Hypochlorite Anode designed only for one-way operation should not automatically be assumed suitable for a reversal system.

For polarity-reversal equipment, both electrode surfaces, coating distribution, connection design, and switching schedule should be reviewed together.

---

🔬 Titanium Pretreatment & MMO Coating

The coating system depends on a properly prepared titanium substrate.

A typical preparation sequence may include:

Degreasing → Surface Conditioning → Chemical Activation → Rinsing → Drying

After pretreatment, the active Ru-Ir layer is normally built through repeated precursor application and thermal conversion.

Typical Coating Sequence

Precursor Application → Drying → Thermal Decomposition → Cooling → Repeated Cycles → Final Thermal Treatment

The number of coating cycles is a manufacturing variable, not a complete product specification.

For a Sodium Hypochlorite Anode, the final coating should instead be evaluated by chemistry, active loading, coated area, surface coverage, and electrochemical duty.

---

🧪 Coating Loading Is Not the Same as Coating Thickness

Several coating terms are often confused.

For example, a physical coating thickness does not directly tell the customer the total amount of ruthenium and iridium present on the electrode.

Likewise, the phrase “Ru-Ir MMO” does not define the loading.

The coating for a Sodium Hypochlorite Anode should therefore be specified according to current density, chlorine-production duty, operating hours, salinity, temperature, and expected lifetime.

---

🏭 Application Matrix

This sodium hypochlorite anode is intended for chloride-rich electrochlorination applications.

The Sodium Hypochlorite Anode is specifically intended for chlorine-evolution service. It should not be treated as a universal MMO electrode for every oxygen- or chlorine-based electrochemical process.

---

💧 Sodium Hypochlorite Generator Integration

The electrode operates together with the complete cell:

Anode · Cathode · DC Power Supply · Brine Feed · Flow Channel · Product Outlet

Electrode performance is affected by:

• spacing between anode and cathode;
• current input location;
• mesh orientation;
• hydraulic flow direction;
• active coated area;
• cell dimensions;
• gas release path.

For a replacement Sodium Hypochlorite Anode, installation drawings are particularly valuable because they allow the electrical connection, frame, tabs, and mesh direction to be reproduced correctly.

---

🌊 Seawater Electrochlorination

Seawater electrochlorination introduces additional design concerns because salinity and hardness can vary.

A seawater Chlorine Evolution Anode may operate under continuous high-flow conditions and can be exposed to significant calcium and magnesium loading in the overall cell.

The electrode specification should therefore be reviewed together with water analysis, flow rate, operating current, and cleaning strategy.

---

⏳ Performance & Service Life

For a Sodium Hypochlorite Anode, current efficiency, chlorine output, cell voltage, and service life should never be published as one universal guaranteed number.

They depend on the complete electrolyzer.

The correct statement is:

Performance and service life are operating-condition dependent.

When a lifetime requirement is important, it should be discussed together with actual chlorine output, current density, salinity, temperature, and operating schedule.

---

🔍 Quality Control

A finished Sodium Hypochlorite Anode requires inspection of both the titanium structure and the active coating.

Documentation

Titanium MTC

Coating Report

Mesh / Dimensional Inspection Report

Project Inspection Report

For a specification-controlled Sodium Hypochlorite Anode, coating chemistry, active area, and mesh geometry should be documented separately rather than hidden inside one generic certificate.

---

♻️ Replacement & Recoating Evaluation

Used titanium mesh may sometimes be suitable for recoating if the substrate remains mechanically sound.

A typical evaluation sequence is:

Old Coating Removal → Mesh Inspection → Connection Inspection → Surface Reactivation → Recoating

The substrate should be rejected for recoating if there is unacceptable strand thinning, severe deformation, deep corrosion, damaged connections, or loss of structural integrity.

A used Sodium Hypochlorite Anode should therefore be inspected before reuse is approved.

---

---

Sodium Hypochlorite Anode FAQ

What does the anode do in a sodium hypochlorite generator?

The anode oxidizes chloride in brine or seawater to generate active chlorine. In the electrolyzer, these chlorine species and alkaline conditions support hypochlorite formation. A Ru-Ir MMO coating on titanium mesh provides the active surface; final NaClO output depends on the complete cell and operating conditions.

How much chlorine can an anode produce?

The theoretical chlorine equivalent is approximately 1.32 g Cl₂ per ampere-hour at full current efficiency. Actual available-chlorine output is lower when competing reactions and process losses occur. Use the required output, operating current and validated current efficiency to select active area and current density; the theoretical figure is not a guaranteed production rate.

Are Ru:Ir ratio, metal loading and coating thickness interchangeable?

No. Specify the Ru:Ir ratio and whether its basis is molar or by mass, the active-metal loading and units, and the coated-area convention separately. A physical thickness does not establish Ru or Ir loading. For mesh, also state whether current density uses projected area or the agreed coated surface area.

Can the same anode be used with seawater or polarity reversal?

Suitability must be reviewed for the actual salinity, hardness, temperature, flow and cleaning method. If the generator reverses polarity, both electrode duties and the switching schedule must be part of the coating specification. A one-way anode design should not be assumed suitable for reversal or assigned a fixed service life without operating data.

Related Anodes and Quotation Guidance

For oxygen-evolution duty, compare the iridium tantalum anode. Browse titanium anodes and the MMO anode manufacturing guide. Use the purchasing guide with chlorine-output duty, feed-water analysis, mesh drawing, active area, current, electrode gap and polarity mode.

Technical References

A primary study of active chlorine generation on Ti/RuO₂–IrO₂ anodes examines chloride concentration and pH. De Nora’s electrochlorination electrode overview gives an industrial application reference. Neither source defines a NiTiCu output rating or lifetime guarantee.

Why NiTiCu?

NiTiCu treats this electrode as part of an electrochlorination system, not as a generic coated titanium mesh.

Each Sodium Hypochlorite Anode can be reviewed against the required chlorine output, salinity, current density, water chemistry, cell geometry, hydraulic flow, and maintenance strategy.

Design the electrode around the generator—not the generator around a stock electrode.

---
